Transparent foil of plasticised polyvinyl chloride, with a pearly effect and different level of saturation .
Size: 50m²
Package: Roll (Hard tube)
Length: 25m
Width: 2m

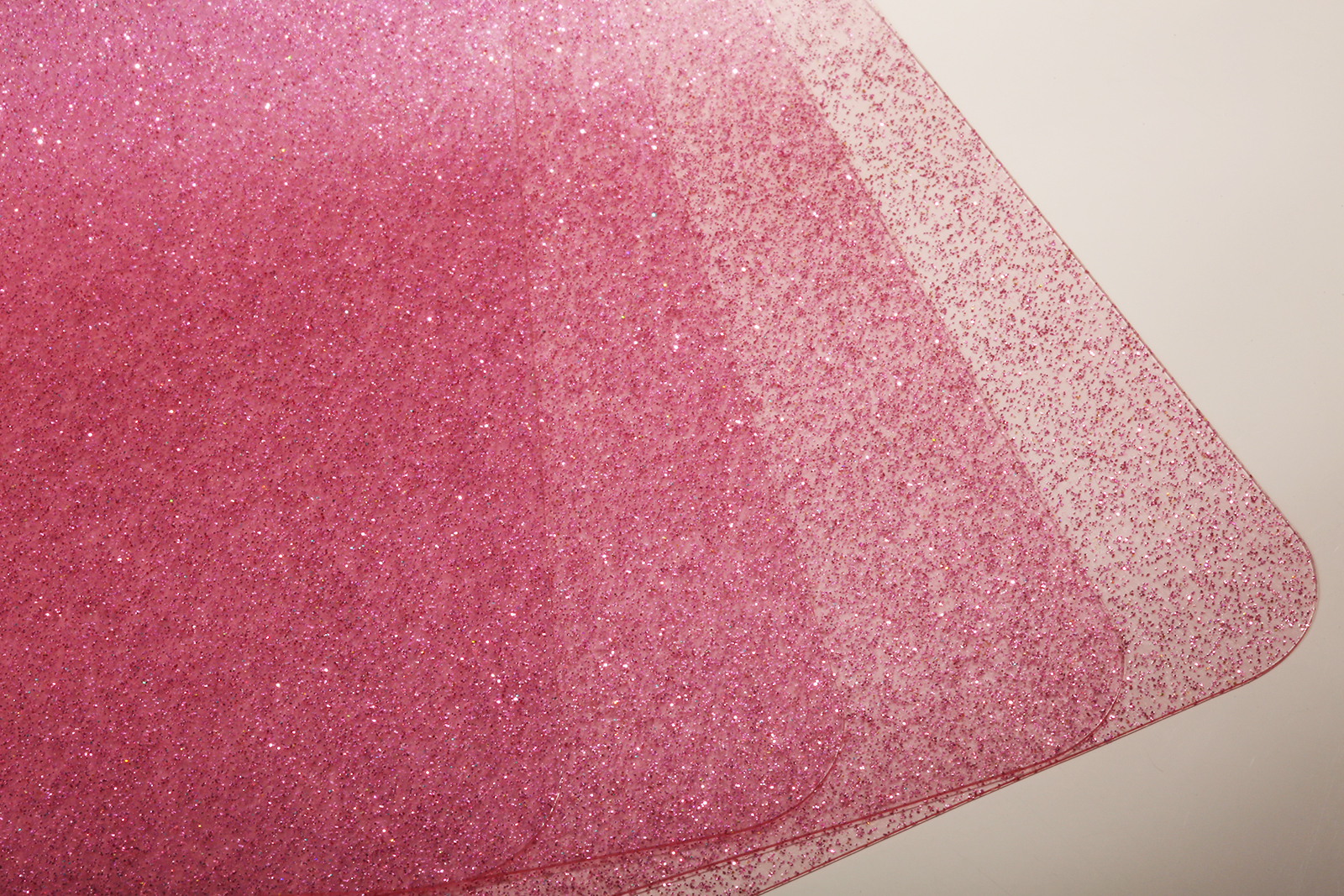

Ruvitex Prestige – Light Pink
Product Description
Transparent foil of plasticised polyvinyl chloride, with a pearly effect and different level of saturation .
Application
Suitable for :
- haberdashery articles / bags , dressing-cases , book-covers , business card holders, cases and more
- beach products
- wind-resistant curtains, kiosks, restaurants and more
Characteristics and advantages
- Watertightness
- Resistance to aging
- Excellent resistance to environmental influences (UV rays / Acid rain)
- High strength characteristics and elasticity
- Flexibility at low temperatures
- Excellent weldability
- Does not contain DEHP / DOP / plasticizer
- Does not contain toxic additions
Appearance: Rolled product
Composition: Transparent foil from plasticized polyvinyl chloride with a pearlescent effect.
Packing
- Each roll is packed in a transparent polyethylene film
- Roll length: 25,00 m
- Roll width: 2,00 m
Storing: Rolls must be stored in horizontal position in the original packing without direct exposure to sunlight, rain and snow.
| Visible defects | Not present | EN 1850-2 |
| Length | 25,00 (-0 % / +5 %) m | EN 1848-2 |
| Width | 2,00 (-0,5% / +1%)m | EN 1848-2 |
| Tensile strength | Method B | EN 12311-2 |
| warp | ≥15 N/mm² | |
| weft | ≥15 N/mm² | |
| Elongation | Method B | EN 12311-2 |
| warp | ≥200% | |
| weft | ≥200% | |
| Tearing strength | EN 12310-2 | |
| warp | ≥80N | |
| weft | ≥60N | |
| Joint peel resistance | ≥200N/50mm | EN 12316-2 |
| Water tightness | complies | EN 1928 Method C |
| Resistance to artificial aging | complies | EN 1296 |
| Resistance to UV radiation | complies | EN 1297 |
| Changing the sizes after thermal
treatment (80˚С, 15 min) after 24h |
EN 1107-2 | |
| warp | ±1.5% | |
| weft | ±1.0% | |
| Foldability at low temperature / without cracking / |
up to -30°C | EN 495-5 |
Appropriate ways for joining the individual strips / canvas /
Considering the area of application and the conditions of use , recommended is the method of welding with high-frequency impulse.
The individual bands are overlaped with at least 40-50mm overlaping and in this area is carried out the welding.
In this way is obtained a strong, homogenous , welding joint.
Application limits
Temperature
The foil can be applied on territories where temperature of the environment is not less than -30 ° C and not higher than +50 ° C.
Health and safety information
PVC foil “Prestige” is an article within the meaning of Regulation (EC) 1907/2006 Article 3.3. A Material Safety Data Sheet following EC- Regulation 1907/2006, Article 31 is not required for the product when sold, shipped or used. The product has no harmful effects on environment and human health when stored and used as specified.
Reach
Regulation of the EU on chemicals and their safe use!
ЕО 1907/2006 /REACH/
PVC foil “Prestige” is an article within the meaning of Regulation (EC) No 1907/2006.The product does not contain any substances intended to be released from it under normal conditions of storage, use and service. Therefore, there are no registration requirements for substances in the article within the meaning of Article 7(1) of the Regulation.
Additional Information
| Weight | 50 kg |
|---|---|
| Color Saturation | 25%, 50%, 75%, 100% |
| Thickness | 0.4mm, 0.5mm, 0.6mm, 0.8mm |
